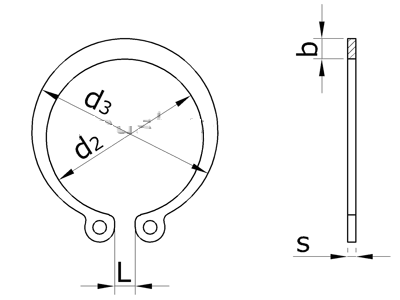

d1 - диаметр канавки; d2 - номинальный внутренний диаметр кольца в свободном состоянии; d3 - номинальный наружный диаметр кольца в свободном состоянии; s - номинальная толщина кольца; b - максимальная висота тела кольца; L - ширина разреза кольца в свободном состоянии. |
Обозначение |
Диаметр вала, мм d |
Размеры, мм | Масса 1000 колец, кг | |||||
d1 | d2 | d3 | s | b | L | |||
A4 | 4 | 3,6 | 3,5 | 4,96 | 0,4 | 0,9 | - | 0,021 |
A5 | 5 | 4,6 | 4,5 | 6,16 | 0,6 | 1,1 | - | 0,066 |
A6 | 6 | 5,6 | 5,4 | 7,34 | 0,7 | 1,3 | - | 0,107 |
A7 | 7 | 6,6 | 6,4 | 8,54 | 0,8 | 1,4 | - | 0,140 |
A8 | 8 | 7,5 | 7,2 | 9,3 | 1,0 | 1,5 | - | 0,440 |
A9 | 9 | 8,5 | 8,2 | 10,6 | 1,0 | 1,7 | - | 0,460 |
A10 | 10 | 9,5 | 9,2 | 11,8 | 1,0 | 1,8 | 2,0 | 0,490 |
A11 | 11 | 10,5 | 10,2 | 12,8 | 1,0 | 1,8 | 3,0 | 0,510 |
A12 | 12 | 11,3 | 11,0 | 13,6 | 1,0 | 1,8 | 3,0 | 0,520 |
A13 | 13 | 12,2 | 11,9 | 14,7 | 1,0 | 2,0 | 3,0 | 0,550 |
A14 | 14 | 13,2 | 12,9 | 15,9 | 1,0 | 2,1 | 3,0 | 0,600 |
A15 | 15 | 14,1 | 13,8 | 17,0 | 1,0 | 2,2 | 3,0 | 0,639 |
A16 | 16 | 15,0 | 14,7 | 17,9 | 1,2 | 2,2 | 3,0 | 1,043 |
A17 | 17 | 16,0 | 15,7 | 19,1 | 1,2 | 2,3 | 3,0 | 1,058 |
A18 | 18 | 16,8 | 16,5 | 19,9 | 1,2 | 2,4 | 3,0 | 1,117 |
A19 | 19 | 17,8 | 17,5 | 21,1 | 1,2 | 2,5 | 3,0 | 1,447 |
A20 | 20 | 18,6 | 18,2 | 21,8 | 1,2 | 2,6 | 3,0 | 1,665 |
A22 | 22 | 20,6 | 20,2 | 24,2 | 1,2 | 2,8 | 3,0 | 1,885 |
A23 | 23 | 21,5 | 21,1 | 25,3 | 1,2 | 2,9 | 3,0 | 2,000 |
A24 | 24 | 22,5 | 22,1 | 26,3 | 1,2 | 3,0 | 3,0 | 2,004 |
A25 | 25 | 23,5 | 23,1 | 27,3 | 1,2 | 3,0 | 3,0 | 2,684 |
A26 | 26 | 24,5 | 24,0 | 28,2 | 1,2 | 3,1 | 3,0 | 2,782 |
A28 | 28 | 26,5 | 25,8 | 30,2 | 1,2 | 3,2 | 3,0 | 2,892 |
A29 | 29 | 27,5 | 26,8 | 31,6 | 1,2 | 3,4 | 3,0 | 2,992 |
A30 | 30 | 28,5 | 27,8 | 32,8 | 1,2 | 3,5 | 3,0 | 3,102 |
A32 | 32 | 30,2 | 29,5 | 34,5 | 1,2 | 3,6 | 3,0 | 3,342 |
A34 | 34 | 32,0 | 31,4 | 36,8 | 1,2 | 3,8 | 3,0 | 3,552 |
A35 | 35 | 33,0 | 32,2 | 37,6 | 1,7 | 3,9 | 5,0 | 6,300 |
A36 | 36 | 34,0 | 33,0 | 38,6 | 1,7 | 4,0 | 5,0 | 6,563 |
A37 | 37 | 35,0 | 34,0 | 39,8 | 1,7 | 4,1 | 5,0 | 6,763 |
A38 | 38 | 36,0 | 35,0 | 40,6 | 1,7 | 4,2 | 5,0 | 6,963 |
A40 | 40 | 37,5 | 36,5 | 42,5 | 1,7 | 4,4 | 5,0 | 7,267 |
A42 | 42 | 39,5 | 38,5 | 44,7 | 1,7 | 4,5 | 5,0 | 7,564 |
A45 | 45 | 42,5 | 41,5 | 48,1 | 1,7 | 4,7 | 5,0 | 8,067 |
A46 | 46 | 43,5 | 42,5 | 49,3 | 1,7 | 4,8 | 5,0 | 8,367 |
A48 | 48 | 45,5 | 44,5 | 51,7 | 1,7 | 5,0 | 5,0 | 8,767 |
A50 | 50 | 47,0 | 45,8 | 53,0 | 2,0 | 5,1 | 5,0 | 12,994 |
A52 | 52 | 49,0 | 47,8 | 55,2 | 2,0 | 5,2 | 5,0 | 13,494 |
A54 | 54 | 51,0 | 49,8 | 57,4 | 2,0 | 5,3 | 6,0 | 13,794 |
A55 | 55 | 52,0 | 50,8 | 58,6 | 2,0 | 5,4 | 6,0 | 14,294 |
A56 | 56 | 53,0 | 51,8 | 59,8 | 2,0 | 5,5 | 6,0 | 14,594 |
A58 | 58 | 55,0 | 53,8 | 61,6 | 2,0 | 5,6 | 6,0 | 15,094 |
A60 | 60 | 57,0 | 55,8 | 64,0 | 2,0 | 5,8 | 6,0 | 15,494 |
A62 | 62 | 59,0 | 57,8 | 66,4 | 2,0 | 6,0 | 6,0 | 15,994 |
A65 | 65 | 62,0 | 60,8 | 70,0 | 2,5 | 6,3 | 6,0 | 20,445 |
A68 | 68 | 65,0 | 63,6 | 73,2 | 2,5 | 6,5 | 6,0 | 25,883 |
A70 | 70 | 67,0 | 65,6 | 75,4 | 2,5 | 6,6 | 6,0 | 26,683 |
A72 | 72 | 69,0 | 67,6 | 77,8 | 2,5 | 6,8 | 6,0 | 27,483 |
A75 | 75 | 72,0 | 70,6 | 80,6 | 2,5 | 7,0 | 6,0 | 28,614 |
A78 | 78 | 75,0 | 73,5 | 84,1 | 2,5 | 7,3 | 6,0 | 31,914 |
A80 | 80 | 76,5 | 75,0 | 85,8 | 2,5 | 7,4 | 6,0 | 34,914 |
A82 | 82 | 78,5 | 77,0 | 88,2 | 2,5 | 7,6 | 6,0 | 36,214 |
A85 | 85 | 81,5 | 79,5 | 91,1 | 2,5 | 7,8 | 6,0 | 37,114 |
A88 | 88 | 84,5 | 82,5 | 94,5 | 3,0 | 8,0 | 6,0 | 38,414 |
A90 | 90 | 86,5 | 84,5 | 96,5 | 3,0 | 8,2 | 6,0 | 47,615 |
A92 | 92 | 88,5 | 86,5 | 98,7 | 3,0 | 8,3 | 6,0 | 48,007 |
A95 | 95 | 91,5 | 89,5 | 102,3 | 3,0 | 8,6 | 6,0 | 49,607 |
A98 | 98 | 94,5 | 92,5 | 105,9 | 3,0 | 8,9 | 6,0 | 50,207 |
A100 | 100 | 96,5 | 94,5 | 108,1 | 3,0 | 9,0 | 8,0 | 50,671 |
A102 | 102 | 97,0 | 95,0 | 108,2 | 3,0 | 9,1 | 8,0 | 55,071 |
A105 | 105 | 100,0 | 98,0 | 111,6 | 3,0 | 9,3 | 8,0 | 66,871 |
A108 | 108 | 103,0 | 101,0 | 114,8 | 3,0 | 9,4 | 8,0 | 68,671 |
A110 | 110 | 105,0 | 103,0 | 117,2 | 3,0 | 9,6 | 8,0 | 70,071 |
A112 | 112 | 107,0 | 105,0 | 119,4 | 3,0 | 9,7 | 8,0 | 71,271 |
A115 | 115 | 110,0 | 108,0 | 122,6 | 3,0 | 9,8 | 8,0 | 73,280 |
A120 | 120 | 115,0 | 113,0 | 128,4 | 3,0 | 10,2 | 8,0 | 76,570 |
A125 | 125 | 120,0 | 118,0 | 133,2 | 3,0 | 10,4 | 8,0 | 79,825 |
A130 | 130 | 125,0 | 122,5 | 138,3 | 3,0 | 10,7 | 8,0 | 92,325 |
A135 | 135 | 130,0 | 127,5 | 143,9 | 3,0 | 11,0 | 8,0 | 95,925 |
A140 | 140 | 135,0 | 132,5 | 149,3 | 3,0 | 11,2 | 8,0 | 101,925 |
A145 | 145 | 140,0 | 137,5 | 154,9 | 3,0 | 11,5 | 8,0 | 103,025 |
A150 | 150 | 145,0 | 142,5 | 160,5 | 3,0 | 11,8 | 8,0 | 106,675 |
A155 | 155 | 150,0 | 147,5 | 165,3 | 3,0 | 12,0 | 8,0 | 110,075 |
A160 | 160 | 155,0 | 152,5 | 170,7 | 3,0 | 12,2 | 8,0 | 113,675 |
A165 | 165 | 160,0 | 157,0 | 175,8 | 3,0 | 12,5 | 8,0 | 117,175 |
A170 | 170 | 165,0 | 162,0 | 181,6 | 3,0 | 12,9 | 8,0 | 120,875 |
A175 | 175 | 170,0 | 167,0 | 186,6 | 3,0 | 12,9 | 8,0 | 124,374 |
A180 | 180 | 175,0 | 172,0 | 192,8 | 3,0 | 13,5 | 8,0 | 127,870 |
A185 | 185 | 180,0 | 177,0 | 197,8 | 3,0 | 13,5 | 8,0 | 131,570 |
A190 | 190 | 185,0 | 182,0 | 203,8 | 3,0 | 14,0 | 8,0 | 134,960 |
A200 | 200 | 195,0 | 192,0 | 213,8 | 3,0 | 14,0 | 8,0 | 142,070 |
